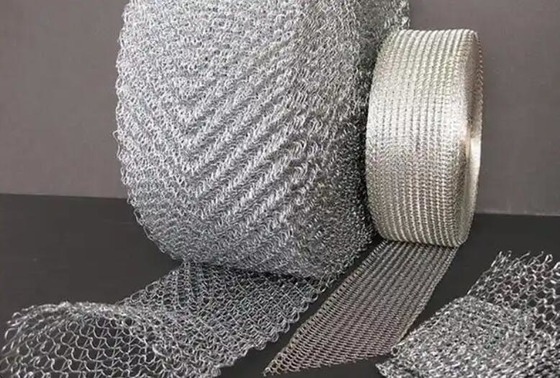

Corrosion Resistant Compressed Knitted Wire Mesh Tube Irregular Hole Customized Length

  • Corrosion Resistant Compressed Knitted Wire Mesh Tube Irregular Hole Customized Length
Place of Origin Hengshui,China
نام تجاری TL
Model Number TL k 06
Minimum Order Quantity 5 rolls
قیمت 8-40 per square meter
Packaging Details Inside waterproof paper,outside wooden carton
Delivery Time 14 working days
Supply Ability 3000 rolls per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتس اپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
مادی سیم فلزی ضد زنگ AISI201 ، 202 ، 301 ، 302 ، 304 ، 304L ، 321 ، 316 ، 316 L نوع مش سیم
سبک بافتن بافت ساده قطر سیم 0.025mm-2mm ، 0.025mm-10mm
استفاده Strainers Filter Demister Pad عرض 0.5-2m
طول سفارشی نشان مقاومت در برابر خوردگی
کاربرد تصفیه هوا و مایع شکل سوراخ بی نظیر
برجسته کردن

corrosion resistant knitted wire mesh tube,custom length stainless steel mesh,irregular hole compressed wire mesh

,

custom length stainless steel mesh

,

irregular hole compressed wire mesh
پیام بگذارید
توضیحات محصول
Corrosion Resistant Compressed Knitted Wire Mesh Tube Irregular Hole Customized Length
Product Specifications
Attribute Value
Material stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L
Type Weave wire mesh
Weave style Plain weave
Wire Diameter 0.025mm-2mm, 0.025mm-10mm
Usage Filter strainers demister pad
Width 0.5-2m
Length Customized
Feature Corrosion Resistance
Application Air & Liquid Filtration
Hole shape irregular
Product Description

Knitted Stainless Steel Wire Mesh Tube, Gas-Liquid Filter Wire Mesh, Stainless Steel Copper Knitted Wire Mesh

Detailed Specifications
Material S.S.201, 202, 301, 302, 304, 316, 316L
Inconel 600 and 601
Monel 400
Brass wire/copper wire
PP/PE wire
Diameter 0.12 - 0.3mm
Width 100mm, 150mm, 300mm, 400mm, 500mm, 520mm, 560mm
Mesh opening 2*4mm, 4*5mm, 12*6mm
Key Features
  • Service Temperature up to 2000°F
  • Corrosive Resistant
  • Extremely Durable
  • Available and Economical
Primary Applications

Filtering, Screening

Knitted Wire Mesh Advantages

The interlocking-loop construction provides exceptional resiliency. When compressed, stretched or bent (within material limits), the mesh springs back to its original form. This property is maintained even in compressed elements, allowing them to conform to specific shapes while responding to in-use loads.

Knitted Wire Mesh Applications
  1. Insulation or hot side support material for extreme temperatures or corrosive environments
  2. Insulation or filtration alternative to steel wool where loose fibers are a concern
  3. Oil Mist Separation, Mist Eliminators or Demister pads for various industries
  4. Sound Attenuation filter in pneumatic tools and vacuum systems
  5. Cryogenic gaskets, seals & discs; Automotive exhaust components
  6. Pre-filter for coarse dust in HVAC systems; Gas turbine and compressed air filters
  7. Engine exhaust muffler packing; EMI/RFI Shielding
