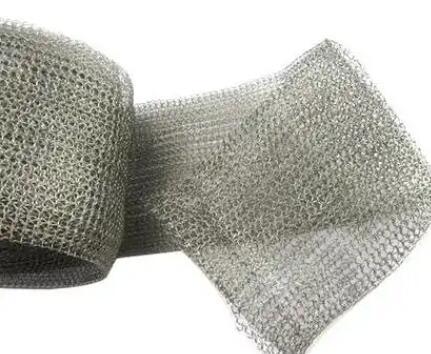

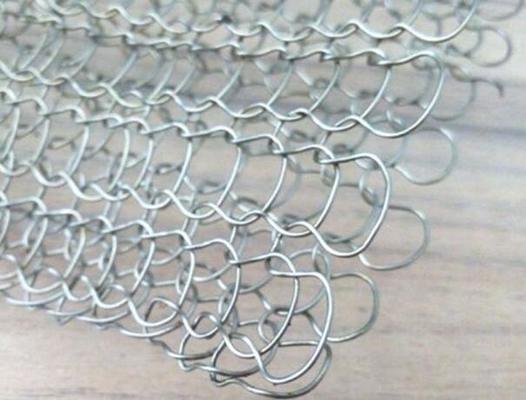

RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh

  • RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh
  • RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh
محل منبع Hengshui ، چین
مقدار حداقل تعداد سفارش 10 رول
قیمت 600-1000 us dollar per ton
زمان تحویل برای مش در انبار ، 5 روز کاری ، سفارشی ساخته شده به کمیت بستگی دارد
قابلیت ارائه 500 رول در هفته

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتس اپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
مادی سیم استیل ضد زنگ نوع مش سیم بافتنی
کاربرد فیلتر سبک بافتن بافندگی قلاب دوزی
شکل سطح نوع تخت و نوع راه راه قطر سیم 0.08mm-0.55mm
برجسته کردن

RFI shielding stainless steel mesh,stainless steel demister wire mesh,knitted filtering screen mesh

,

stainless steel demister wire mesh

,

knitted filtering screen mesh
پیام بگذارید
توضیحات محصول
RFI Shielding Knitted Filtering Screen Mesh, Demister Stainless Steel Wire Mesh
Product Attributes
Attribute Value
Material Stainless Steel Wire
Type Knitted Wire Mesh
Application Filters
Weave Style Crochet Weaving
Surface Shape Flat type and Corrugated type
Wire diameter 0.08mm-0.55mm
Product Description

RFI Shielding Knitted Wire Mesh, knitted filtering screen mesh demister stainless steel wire mesh.

Gas-liquid net, broken foam mesh, filters, knitting nets, it is actually based on traditional ways to improve sweater knitting wire mesh. Knitting yarn is generally φ0.08 ~ φ0.50mm of round wire or pressed into a flat, wire diameter ≤φ0.30mm knotted strands can form multi-strand braided wire, but also with the filaments plied knitting.

Features
  • Highly efficient
  • Long service life
  • Heat resistance
  • Corrosion resistance
  • Abrasion resistance
General Properties
Origin Shaanxi
Materials Stainless steel wire, galvanized wire, brass wire, copper wire, etc
Aperture size 2mmx3mm (4mmx5mm) to 12mmx6mm
Width 40,100,150,300,600mm, etc
Mesh size 2mesh-635mesh
Weave Single strand wire, Double strand wire, multi strands wire
Wire diameter 0.10mm-0.55mm
Knitted Wire Mesh Types
Standard Knitted Wire Mesh
Typical wire diameter (mm) Range of natural width (mm)
0.2-0.35 30-100
Typical number of stitches per cm on length Typical number of stitches per cm cross lay flat
0.6 1.9
High Efficient Knitted Wire Mesh
Typical wire diameter (mm) Range of natural width (mm)
0.2-0.35 30-550
Typical number of stitches per cm on length Typical number of stitches per cm cross lay flat
1.6 0.74
High Penetrated Knitted Wire Mesh
Typical wire diameter (mm) Range of natural width (mm)
0.2-0.35 30-550
Typical number of stitches per cm on length Typical number of stitches per cm cross lay flat
0.5 0.5
Product Details
Standard Knitted Wire Mesh
Hole (number - width) Wire size (mm)
40-100 0.23 0.25 0.27 0.28
60-180 0.23 0.25 0.27 0.28
140-400 0.1-0.4
High Efficient Knitted Wire Mesh
Hole (number - width) Wire size (mm)
70-100 0.23 0.25 0.28
80-100 0.1-0.3
90-100 0.1-0.3
High Penetrated Knitted Wire Mesh
Hole (number - width) Wire size (mm)
20-160 0.15 0.23 0.28
20-150 0.15 0.23 0.28
70-400 0.15 0.23 0.28
RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh 0 RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh 1

Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products. We are located in the wire mesh industrial base Anping city, Hebei province in China.

Our Product Range
  • Stainless steel woven wire mesh
  • Welded wire mesh
  • Crimped wire mesh
  • Hexagonal wire mesh
  • Knitted wire mesh
  • Wire mesh filter
  • Window screen

We have been manufacturing and exporting wire mesh products for 15 years. Our professional, responsible attitude and strictly managed techniques ensure we maintain a leading position in the wire mesh industry. We welcome your enquiry.

RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh 2
For Quotation Requests

To make an offer, please provide us with the following wire mesh specification information:

  • Material
  • Wire diameter
  • Mesh size
  • Wire mesh length
  • Wire mesh width

If possible, please also provide us with the weight per roll that you require.
