Versatile Stainless Steel Knitted Wire Mesh

  • Versatile Stainless Steel Knitted Wire Mesh
  • Versatile Stainless Steel Knitted Wire Mesh
  • Versatile Stainless Steel Knitted Wire Mesh
  • Versatile Stainless Steel Knitted Wire Mesh
محل منبع آنپینگ چین
نام تجاری QIANPU
گواهی ISO
مقدار حداقل تعداد سفارش 50 رول
قیمت negotiable
جزئیات بسته بندی با فيلم پلاستيکي کج شده و بعدش توي جعبه چوبي يا پالت
زمان تحویل یک هفته
شرایط پرداخت T/T، Western Union، L/C
جزئیات محصول
نام محصول مش سیم بافتنی مواد سیم فولادی ضد زنگ AISI 304 / 304L / 316 / 316L
قطر سیم 0.1-0.3 میلی متر (قابل تنظیم) عرض تا 1600 میلی متر
ساختار گره خورده با حلقه تک/چند رشته استاندارد Q/SG12-1-79 Q/YSZZ-88-91
تایپ کنید بافتنی برنامه های کاربردی فیلتراسیون مایعات صنعتی
برجسته کردن

stainless steel knitted wire mesh,versatile wire mesh,knitted steel mesh

,

versatile wire mesh

,

knitted steel mesh
پیام بگذارید
توضیحات محصول
Our Stainless Steel Knitted Wire Mesh is a high-performance flexible metal mesh, manufactured by advanced loop interlocking knitting technology. Different from traditional woven mesh, it features superior elasticity, compressibility and rebound resilience, which makes it ideal for complex curved surfaces and sealing applications.


Specifications:

Knitted Wire Mesh
Types Model Wire Diameter Mesh Width Mesh Length
standard type 40-100 0.10-0.30mm 100-500mm 10-100m
60-150 0.10-0.30mm 100-500mm 10-100m
60-180 0.10-0.30mm 100-500mm 10-100m
105-300 0.10-0.30mm 100-500mm 10-100m
140-400 0.10-0.30mm 100-500mm 10-100m
160-400 0.10-0.30mm 100-500mm 10-100m
high efficient 60-100 0.10-0.30mm 100-500mm 10-100m
70-100 0.10-0.30mm 100-500mm 10-100m
80-100 0.10-0.30mm 100-500mm 10-100m
80-150 0.10-0.30mm 100-500mm 10-100m
90-100 0.10-0.30mm 100-500mm 10-100m
90-150 0.10-0.30mm 100-500mm 10-100m
150-300 0.10-0.30mm 100-500mm 10-100m
200-400 0.10-0.30mm 100-500mm 10-100m
300-600 0.10-0.30mm 100-500mm 10-100m
high penetrated 20-100 0.10-0.30mm 100-500mm 10-100m
20-160 0.10-0.30mm 100-500mm 10-100m
30-150 0.10-0.30mm 100-500mm 10-100m
70-400 0.10-0.30mm 100-500mm 10-100m
170-600 0.10-0.30mm 100-500mm 10-100m
180-700 0.10-0.30mm 100-500mm 10-100m

Notes:

1. 40-100 model: it has 40 openings in the mesh width of 100mm.

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.



Key Features

  1. Premium Material: Adopt AISI 304/316L stainless steel wire, ensuring excellent corrosion resistance, heat resistance and long service life. 316L grade is specially suitable for marine, chemical and acidic environments.
  2. Flexible & Compressible: Can be bent, folded and compressed arbitrarily, with stable rebound performance, no deformation after repeated use.
  3. Uniform Pores: High air permeability, low resistance to gas and liquid flow, not easy to block, easy to clean and maintain.
  4. Multi-Functional Performance: Excellent shock absorption, sound attenuation and EMI/RFI shielding effect, one product for multiple uses.
  5. Easy Processing: Can be cut, stamped, welded and formed into rolls, sheets, pads, tubes and other shapes according to customer drawings.


Wide Applications

✅ Chemical & Petrochemical Industry: Demister pads, gas-liquid separation, distillation towers, desulfurization towers, catalyst carriers
✅ Automotive Industry: Muffler inner mesh, exhaust purification systems, shock absorption gaskets, sealing components
✅ Filtration & Water Treatment: Industrial liquid filtration, oil-water separation, food and beverage filtration, pharmaceutical purification
✅ Electronics & Electricals: EMI/RFI shielding mesh, battery components, heat dissipation nets for electronic equipment
✅ Environmental Protection: Dust removal systems, waste gas treatment, air purification devices
✅ Architecture & Decoration: Flexible metal curtain walls, ceilings, partitions, art decoration meshes

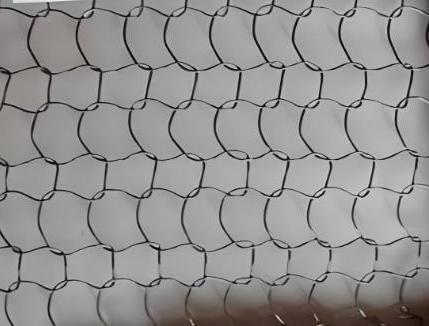

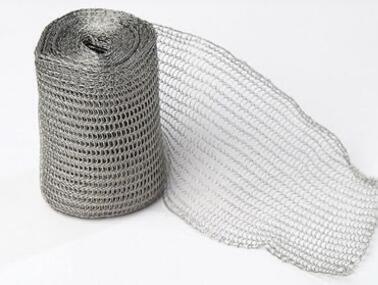

Versatile Stainless Steel Knitted Wire Mesh 0Versatile Stainless Steel Knitted Wire Mesh 1Versatile Stainless Steel Knitted Wire Mesh 2


Customization Service

We support OEM/ODM orders, including custom wire diameter, width, length, structure and packaging. Professional technical team provides one-stop solution according to your application requirements.


Quality Assurance

Our products are strictly tested before delivery, complying with international standards such as ISO. We provide quality warranty and after-sales service to ensure your procurement safety.


Packing:

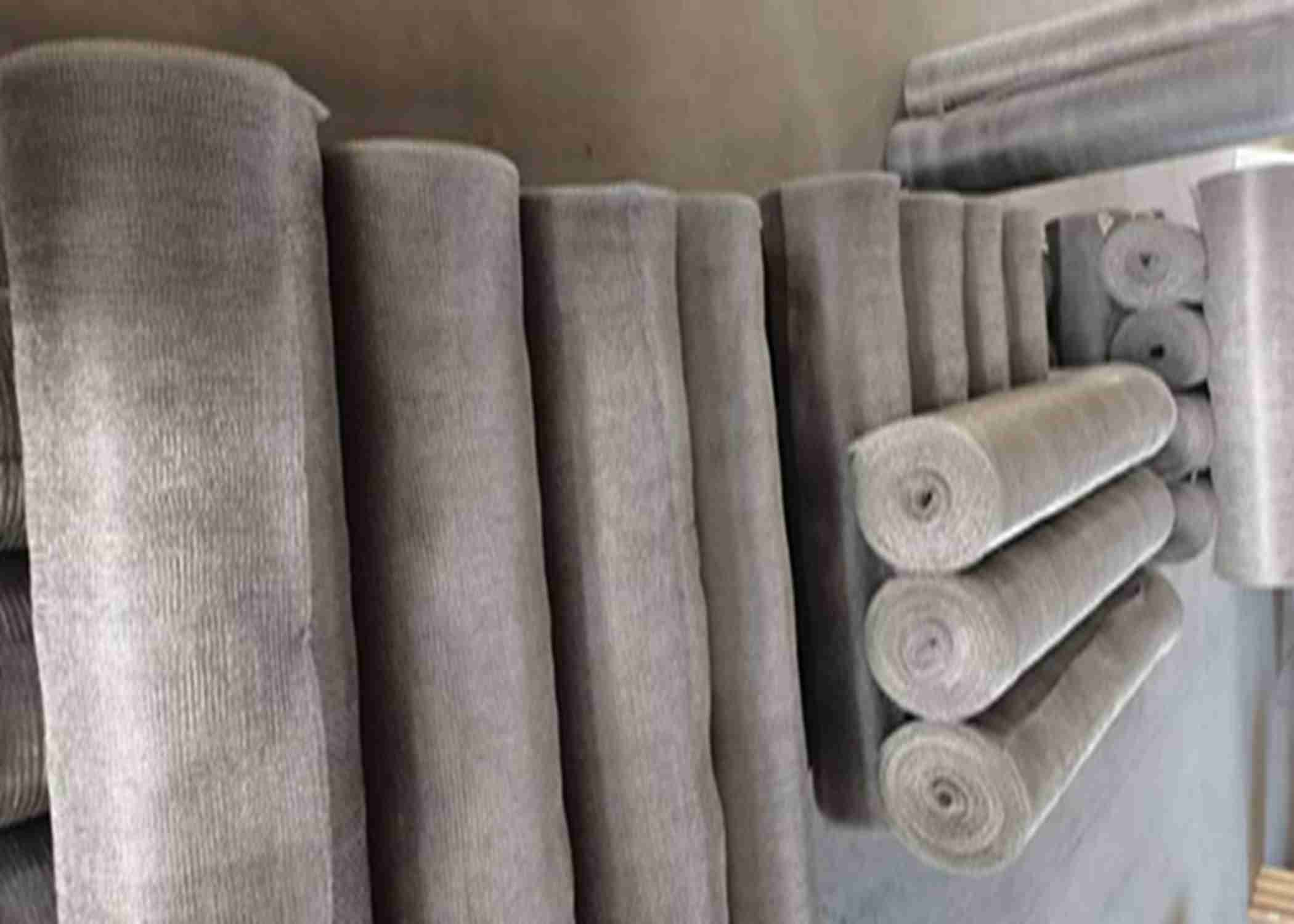

Versatile Stainless Steel Knitted Wire Mesh 3
