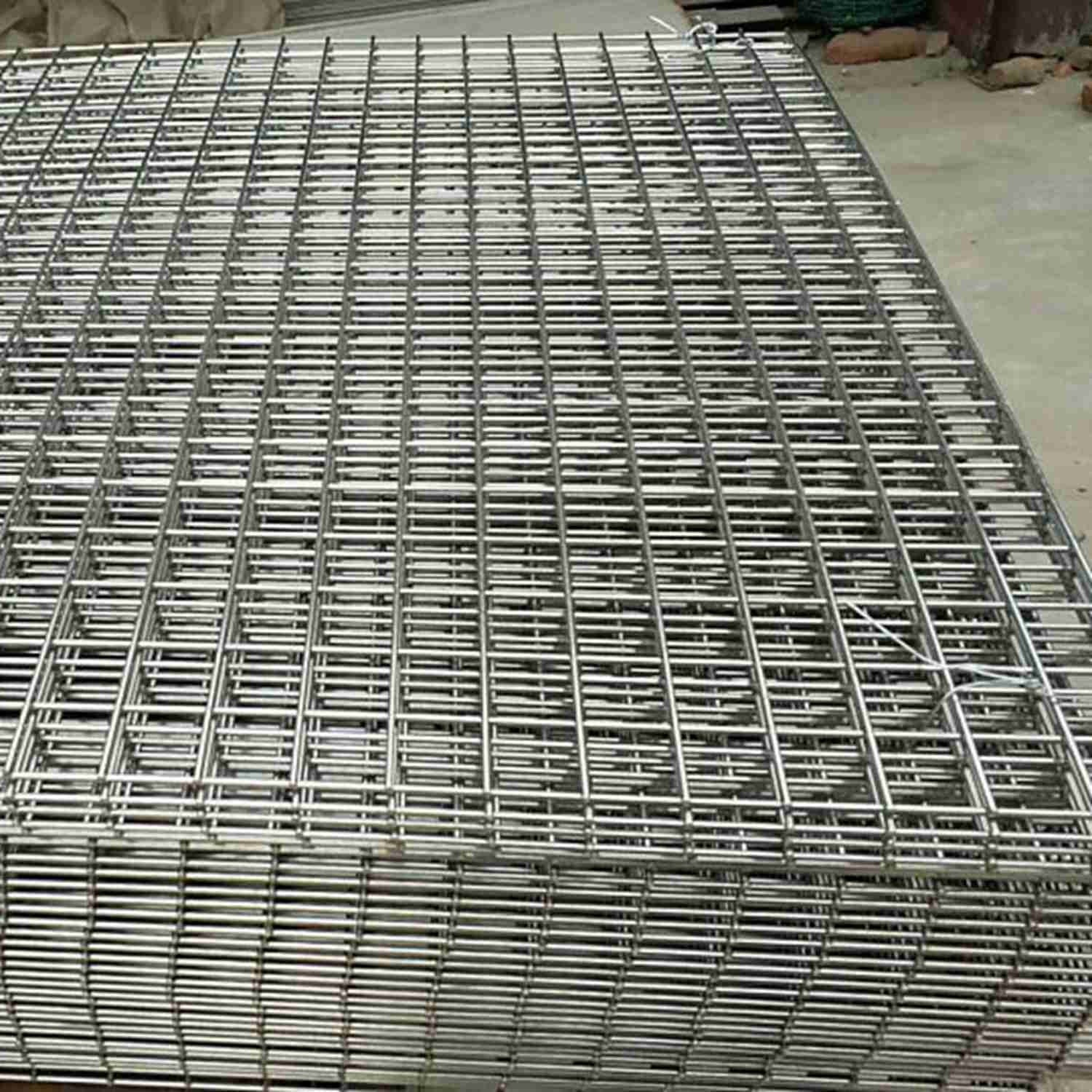

Welded Wire Mesh
جزئیات محصول
| نام محصول | ss بغل سیم جوش | مواد | SS304 یا SS316 |
|---|---|---|---|
| شکل سوراخ | سوراخ مربع یا سوراخ شکاف | اندازه رول | 36 اینچ 100 فوت، 48 اینچ 100 فوت، و غیره |
| اندازه پنل | 3 فوت × 6 فوت، 4 فوت × 8 فوت، 5 فوت × 10 فوت، 1 متر × 2 متر، 1.2 متر × 2.4 متر، 1.5 متر × 3 متر، 2 م | رنگ | نقره ای روشن |
| برجسته کردن | stainless steel welded wire mesh,welded wire mesh fencing,welded wire mesh panels,welded wire mesh fencing,welded wire mesh panels |
||
توضیحات محصول
High-quality low-carbon steel wire, galvanized steel wire or stainless steel wire is adopted as the raw material, which is welded and formed by automatic precision electric welding equipment. It has firm welding points, flat mesh surface and uniform structure, and has multiple functions such as protection, isolation and load-bearing. It is widely used in construction, agriculture, industry, municipal administration, breeding and other fields, with outstanding cost performance. It can be customized according to customer needs to adapt to different scenarios.
Specifications:

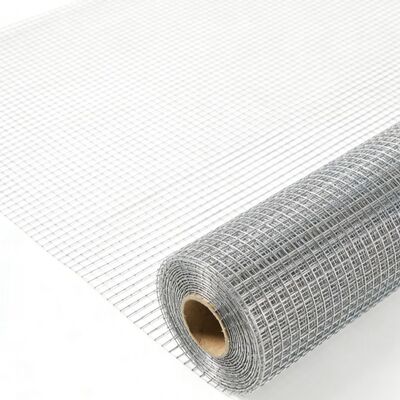

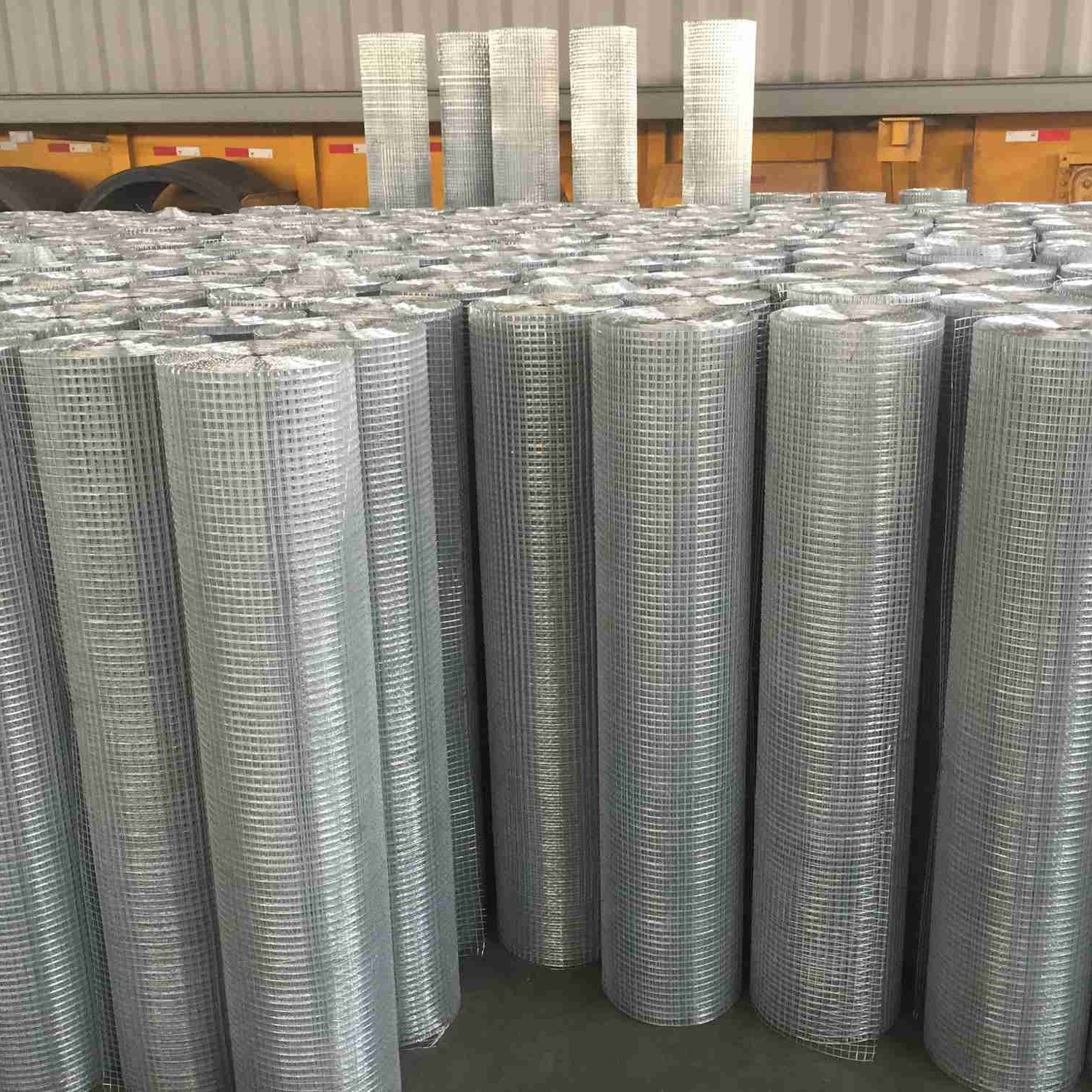

| Stainless Steel Welded Wire Mesh in Rolls | |||
| Mesh Size | Wire Diameter | ||
| mm | inch | BWG gauge | mm |
| 6.4 | 1/4 | 24–22 | 0.56–0.71 |
| 9.5 | 3/8 | 23–19 | 0.64–1.07 |
| 12.7 | 1/2 | 22–16 | 0.71–1.65 |
| 19.1 | 3/4 | 21–16 | 0.81–1.65 |
| 25.4 × 12.7 | 1 × 1/2 | 21–16 | 0.81–1.65 |
| 25.4 | 1 | 21–14 | 0.81–2.11 |
| 38.1 | 1-1/2 | 19–14 | 1.07–2.11 |
| 25.4 × 50.8 | 1 × 2 | 17–14 | 1.47–2.11 |
| 50.8 | 2 | 16–12 | 1.65–2.77 |
| Stainless Steel Welded Mesh Panels | |||
| Mesh Size | Wire Diameter | Panel Width & Length | |
| 12.7 mm | 1/2" × 1/2" | 1.0–2.0 mm |
3 feet × 6 feet 4 feet × 8 feet 5 feet × 10 feet 1 m × 2 m 1.5 m × 3 m 2 m × 4 m |
| 25.4 mm | 1" × 1" | 1.5–3.5 mm | |
| 38.1 mm | 1-1/2" × 1-1/2" | 2.0–5.0 mm | |
| 50.8 mm | 2" × 2" | 2.0–6.0 mm | |
| 76.2 mm | 3" × 3" | 3.0–7.0 mm | |
| 101.6 mm | 4" × 4" | 3.0–8.0 mm | |
| 127 mm | 5" × 5" | 4.0–9.0 mm | |
| 152.4 mm | 6" × 6" | 4.0–10.0 mm | |
| Other panel sizes can also be made according to request. | |||
Material:
Stainless Steel 304 and 316.
Features:
Environmentally friendly;
Elegant appearance;
Strong structure;
Easy to clean;
Non-toxic;
Excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistanc.
Main Application Scenarios:
Construction: Used for thermal insulation, plastering mesh (to prevent cracking), floor slab reinforcement, underfloor heating, and foundation pit protection. An indispensable auxiliary material complying with industry standards.
Agriculture: Fences for farmland, vegetable gardens, orchards (bird/animal protection), and breeding houses (chicken coops, duck coops, pig pens). Mesh sizes can be customized for different livestock.
Industry: Equipment protection, workshop/warehouse division, and mechanical safety barriers. Effectively separates areas, protecting personnel and equipment in factories and workshops.
Municipal & Civil: Community fences, park protection, road isolation, manhole cover guards, balcony railings, and window grilles. Combines protection and aesthetics for urban construction.
Other Uses: Art decoration, crafts, filtration (small mesh sizes), and temporary protection (bare wire).
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
