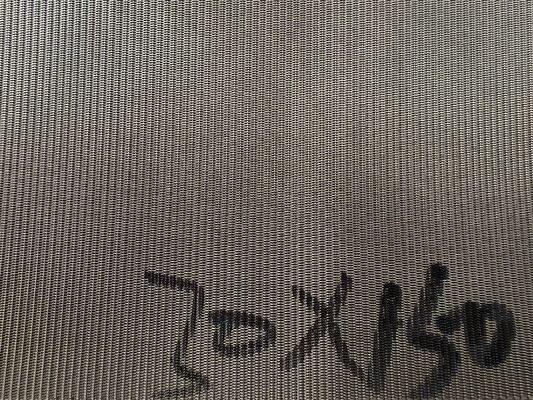

30×150 Dutch Weave Stainless Steel Filter Mesh (304/316L), High Density & Precision

Product Introduction

This 30×150 mesh stainless steel wire mesh is a high-performance industrial filter medium, specifically crafted with twill Dutch weave technology. Unlike standard plain weave mesh, it uses thicker warp wires (30 mesh) and finer weft wires (150 mesh), creating a multi-layered, compact structure with ultra-precise, tortuous apertures. This design balances exceptional mechanical strength with fine filtration efficiency, making it ideal for applications requiring both durability and reliable particle retention.

Product Specifications

Why Choose Our 30×150 Mesh Wire Mesh?

Factory Direct Supply: Over 10 years of specialized wire mesh manufacturing experience, competitive prices, and reliable quality.
Strict Quality Control: Every batch undergoes full inspection (mesh count, aperture size, wire diameter, tensile strength, corrosion resistance) before shipment, with detailed test reports available.
Custom Solutions: Our technical team provides tailored mesh specifications and recommendations based on your application, pressure, temperature, and filtration requirements.
Global After-Sales Support: 24/7 sales and technical support to assist you with product selection, installation, cleaning, and troubleshooting.

Product Features

• High-Strength Dutch Weave Structure



  The combination of thick warp wires and fine weft wires creates a robust, compact weave with excellent pressure resistance and dimensional stability. It withstands high flow rates and pressure differentials without deformation, making it ideal for heavy-duty industrial use.



• Precise & Consistent Filtration



  The multi-layered, tortuous path design ensures uniform aperture size and reliable retention of fine particles (40–50μm), preventing bypass and ensuring consistent filtration quality in liquids, gases, and molten materials.



• Superior Corrosion & Heat Resistance



  Made of food-grade 304/316L stainless steel, the mesh resists acids, alkalis, salts, and high temperatures (up to 600°C for 304, 800°C for 316L). It performs reliably in corrosive liquids, chemical solutions, and high-temperature polymer extrusion processes.



• High Durability & Long Service Life



  The tight twill Dutch weave minimizes wire movement and abrasion, extending service life even under repeated use and cleaning. It resists clogging better than plain weave mesh, reducing maintenance and replacement costs.



• Reusable & Easy to Clean



  The smooth stainless steel surface can be easily cleaned via backwashing, ultrasonic cleaning, or high-temperature sterilization, making it reusable for multiple cycles and cost-effective for industrial operations.



• Food & Industrial Grade Compliance



  Meets FDA/ISO food-grade standards and industrial safety requirements, non-toxic, non-contaminating, and suitable for direct contact with food, beverages, pharmaceutical products, and industrial chemicals.

Application

Polymer & Plastic Extrusion: Filtering molten plastics, resins, and polymers to remove impurities and improve product quality.
Oil & Gas Filtration: Fine filtration of crude oil, lubricants, hydraulic fluids, and natural gas to remove solid contaminants.
Chemical Industry: Filtration of corrosive chemical solutions, solvents, and catalysts in production processes.
Food & Beverage: Filtration of edible oils, syrups, juices, and wine to remove fine particles and ensure purity.
Water Treatment: Industrial wastewater filtration and purification, including removal of suspended solids and micro-particles.
Pharmaceutical & Laboratory: Sterile filtration of liquids, gases, and powders in pharmaceutical manufacturing and research labs.

FAQ

• Q: What is the filtration precision of 30×150 mesh wire mesh?



  A: The typical filtration grade is 40–50μm, suitable for removing fine particles above this size from liquids, gases, or molten materials.



• Q: Why is it called Dutch weave? What are its advantages?



  A: Dutch weave uses different wire counts/diameters for warp and weft, creating a compact, high-density structure with better strength, pressure resistance, and finer filtration than plain weave mesh of the same mesh count.



• Q: Can I choose 316L material for corrosive environments?



  A: Yes, we offer 304 and 316L options. 316L is recommended for use in saltwater, strong acids, or high-corrosion chemical environments for better resistance.



• Q: Can you customize the wire diameter or aperture size?



  A: Yes, we can adjust wire diameters (within a reasonable range) and aperture sizes to meet your specific filtration requirements. Please provide detailed application parameters for customization.



• Q: Is this mesh reusable? How to clean it?



  A: Yes, it is reusable. Common cleaning methods include backwashing with water, ultrasonic cleaning, or high-temperature sterilization (for heat-resistant applications).

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
