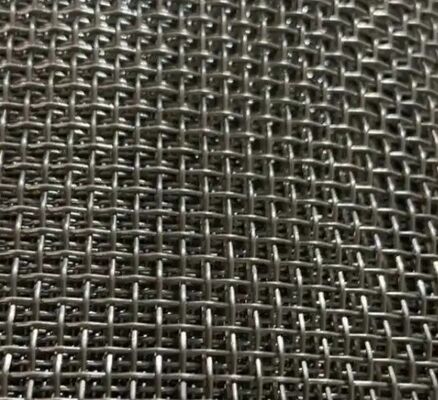

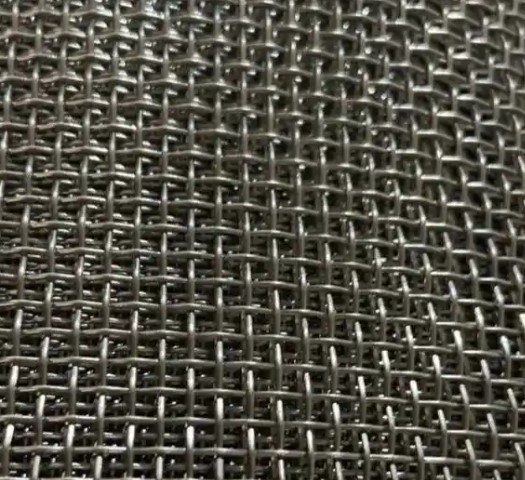

Stainless Steel Woven Wire Mesh with 27mesh
جزئیات محصول
| مواد | فولاد ضد زنگ | اندازه | 1 متر در 30 متر |
|---|---|---|---|
| اندازه سوراخ | 0.7 میلی متر | قطر سیم | 0.24 میلی متر |
توضیحات محصول
Stainless Steel Woven Wire Mesh with 27mesh
27 Mesh Stainless Steel Woven Wire Mesh
Product Overview
27 Mesh Stainless Steel Woven Wire Mesh is a premium medium-fine industrial woven mesh tailored for standard industrial filtration and accurate particle screening. With 27 uniform openings per linear inch, this mesh features finer aperture than 25/26 mesh while delivering higher flow permeability than finer 30+ mesh. Woven from high-purity stainless steel wire via precise plain weave, it boasts ultra-consistent pore size, rigid integral structure and outstanding wear resistance. It is the most widely adopted universal mesh for medium-precision filtration, perfectly balancing screening accuracy, fluid throughput and service life for diverse industrial scenarios.
Standard Specifications
| Specification | Details |
|---|---|
| Mesh Count | 27 meshes per linear inch (custom exclusive medium-fine specification) |
| Standard Wire Diameter | 0.18mm - 0.22mm (optimized for 27 mesh uniform weaving) |
| Approximate Aperture Size | 0.70mm - 0.75mm |
| Available Material | 304, 316, 316L Stainless Steel |
| Weaving Type | Plain Weave (standard, high precision), Twill Weave (customized for high pressure) |
| Surface Treatment | Electrolytic Polishing / Bright Annealing (smooth pore wall, no burrs) |
Core Features
- Medium-Precision Filtration & High Flow: Unique 27 mesh pore size achieves precise interception of 0.7mm+ solid particles, effectively solving the problems of insufficient precision of coarse mesh and easy blockage of fine mesh, maintaining stable liquid and air flow for long-term operation.
- Superior Anti-Corrosion & Anti-Oxidation Performance: High-quality stainless steel raw materials resist acid, alkali, brine and high-temperature oxidation, adapting to harsh working conditions of petrochemical, water treatment and chemical processing.
- Precise Woven Structural Stability: Professional 27 mesh dense weaving process ensures uniform tension of each wire, with high tensile strength and impact resistance, no wire displacement, deformation or breakage under continuous medium scouring.
- Anti-Adhesion & Reusable: Polished smooth surface reduces material residue and adhesion, easy to clean by water flushing or ultrasonic cleaning, with low maintenance cost and long service cycle.
- Multi-Scenario Safety Compliance: Food-grade 304/316L materials meet international food processing hygiene standards; industrial-grade materials are suitable for various industrial filtration and screening scenarios with high safety and stability.
Main Applications
- Petrochemical & Industrial Filtration (Core Application): Specialized for crude oil pre-filtration, chemical medium purification, slurry impurity removal and medium-sized catalyst particle screening. The 27 mesh moderate precision is the most suitable specification for conventional petrochemical primary filtration.
- Food & Beverage Processing: Used for impurity filtration of edible oil, fruit juice, syrup and brewing products, as well as fine screening and grading of starch, grain powder and food auxiliary materials, ensuring food safety and uniform particle size.
- Water Treatment & Environmental Protection: Ideal for industrial circulating water, river water, well water and landscape water filtration, intercepting sediment and suspended impurities; widely used in sewage pretreatment and environmental protection filter equipment.
- Mechanical & Electrical Dust Prevention: Perfect mesh density for air intake dustproof filtration of air compressors, fans, generators and mechanical equipment, balancing dust removal effect and ventilation efficiency.
- Chemical & Plastic Screening: Applied to particle grading and impurity removal of plastic granules, chemical powder and granular raw materials, with stable screening efficiency and no material leakage.
